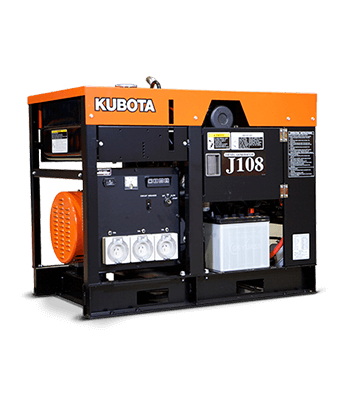

J108 | LK Diesel Service Pty.Ltd

Characteristics of the J108

Engine Specifications

Set
Fuel	Diesel
Fuel Tank Capacity (L)	37
Operating Hours	11.5 @ full load
Starting System	Electric
Weight (kgs)	255
Sound Levels	75dBA @ 7m
Dimensions (mm)	995 x 593 x 860
Engine
Model	D722
Type	4-Cycle Water Cooled Diesel Engine
Displacement (cc)	719
No of Cylinders	3
Bore & Stroke (mm)	67 x 68
Rated Output	10.3kW @ 3000rpm
Alternator
Type	Revolving Field
Max Output	8.8kVA (8.8kW)
Rated Output	8kVA(8kW)
Voltage	240
Frequency	50Hz
Current	33.3Amps
Power Factor	1
Poles	2
Voltage Regulation	AVR

Engine Construction

The vertical diesel engines directly coupled to the generator ensures high output at minimal size and weight.
The wave form deformation is kept to a minimum with the development of a skewed rotor, while damper windings protect the generator against short circuits.
The larger capacity fuel tank enables longer periods of operation on a single tank of fuel.
New access terminals are provided for easy wiring with the auto start / stop systems
Oil, water and filters are located on one side for ease maintenance and a double air cleaner element adds extra piece of mind.
