J112

Inner Banner Img
J112

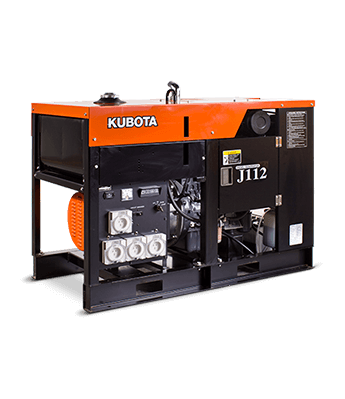

Characteristics of the J112
  • The Kubota J112 is a two pole
  • Partially enclosed
  • Single phase diesel engine with a capacity of 13.3kVA at 3000RPM

SPECIFICATIONS

Engine Specifications
Set
Fuel Diesel
Fuel Tank Capacity (L) 79
Operating Hours 17 @ Full Load
Starting System Electric
Weight (kgs) 340
Sound Levels 76.5dBA @ 7m
Dimensions (mm) 1215 x 611 x 922
Engine
Model D1005
Type 4-Cycle Water Cooled Diesel Engine
Displacement (cc) 1001
No of Cylinders 3
Bore & Stroke (mm) 76 x 73.6
Rated Output 15.6kW @ 3000rpm
Alternator
Type Revolving Field
Max Output 113.2kVA (13.2kW)
Rated Output 12kVA(12kW)
Voltage 240
Frequency 50Hz
Current 50.0Amps
Power Factor 1
Poles 2
Voltage Regulation AVR

CONSTRUCTION

Engine Construction
  • The vertical diesel engines directly coupled to the generator ensures high output at minimal size and weight.
  • The wave form deformation is kept to a minimum with the development of a skewed rotor, while damper windings protect the generator against short circuits.
  • The larger capacity fuel tank enables longer periods of operation on a single tank of fuel.
  • A single point lifting eyelet and fork lift openings make for easy transportation.
  • New access terminals are provided for easy wiring with auto start / stop systems.
  • Oil, water and filters are located on one side for ease of maintenance.

PERFORMANCE

Engine Performance
kVA13.3
RPM3000
