Isuzu GS050PTY – 50 kVA

Inner Banner Img
0

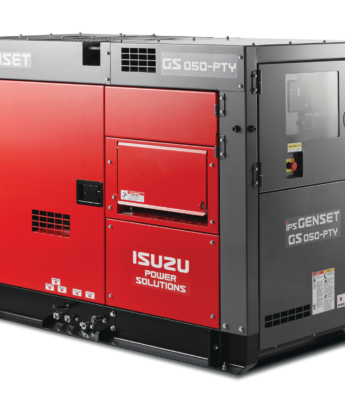

generator set gs 050-pty Isuzu GS050PTY – 50 kVA
  • Model: Isuzu GS050PTY 50 kVA Industrial Diesel Generator – PREMIUM CANOPY with OUTLETS
  • Power Output: 50 kVA 3 Phase Output – Net Continuous Rating
  • Canopy & Construction: Fully Enclosed – Bunded Base Frame – Fork Pockets
  • Acoustics: 57 dBA @ 7 metres – Premium Weather Proof Canopy System
  • Engine: Isuzu 4BG1T – In Line 4 Cylinder (4329cc) Liquid Cooled / Turbocharged @ 1500 RPM
  • Electrical System: 24V Electrics – Mechanical Governor
  • Battery & Safety: 24V Starting Battery & Isolation Switch
  • Fuel System: 160 Litre Fuel Tank – 11.8 Litres per Hour @ 100% Load – 13.5 Hours RUN TIME
  • Outlets:
    • 3 x 15A 240V Outlets – Australian Compliance with Earth Leakage Circuit Breakers
    • 1 x 50A 415V Outlet – Australian Compliance with Earth Leakage Circuit Breaker
    • 1 x 32A 415V Outlet – Australian Compliance with Earth Leakage Circuit Breaker
    • 1 x 20A 415V Outlet – Australian Compliance with Earth Leakage Circuit Breaker
  • Controller: COMPAP MRS16 Control Panel with 2 Wire Auto Start Connectivity
  • Dimensions & Weight: L 200 CM × W 95 CM × H 143 CM @ 1431 KG DRY Weight
  • Emissions: Tier 2 Emission Compliance
  • Origin: Made in Japan

SPECIFICATIONS

Specifications
Rated Output 50 kVA / 40 kWe (Prime)
Rated Voltage / Frequency 415 VAC / 50 Hz
Rated Current / Power Factor 69.6 / 0.80
Alternator Rotating Field, Brushless 3-Phase Synchronous Alternator, 4-Pole
Winding / Insulation Class 3-Phase, 3-Wire / F
Excitation Self Excitation (Brushless)
Download PDF Download Now

CONSTRUCTION

ENGINE
  • Type : Water Cooled, 4-Cycle Diesel Engine
  • Model / No. of Cylinders : Isuzu 4BG1T / 4
  • Displacement : 4.329 L
  • Continuous Rated Output : 48.5 kW @ 1500 RPM
  • Combustion System : Direct Injection, Turbocharged
  • Emission Rating : Tier-2
  • Cooling Method : Radiator
  • Cooling Water Volume : 17.0 L (50-50% Water-Glycol)
  • Lubricating Method : Forced Lubrication
  • Lubricant Volume : 13.2 L
  • Fuel : Diesel Fuel (ASTM No. 2-D) only
  • Fuel Consumption @ 100% Load : 11.8 L/hour (approx.)
  • Starting Method : Electric Start
  • Starter Motor Capacity : 24 V – 4.5 kW
  • Charging Alternator Capacity : 24 V – 20 A
  • Battery / Battery Isolator : 95D31R x 2 / 1-Pole
