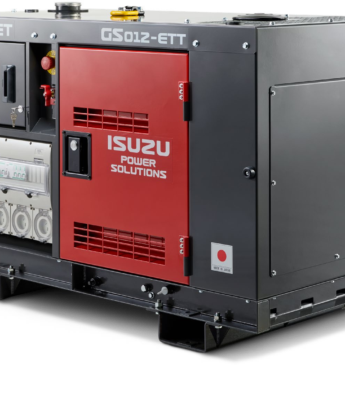

GS012-ETT GENERATOR SET Isuzu GS012-ETTS

Model Name : Isuzu GS012-ETTS Industrial Diesel Generator – MADE IN JAPAN
Power Output: 12.1 kVA Prime THREE PHASE Output 415V / 240V 50 Hz
Canopy & Acoustics: Fully Enclosed Canopy with Access Doors – 65 dBA @ 7 Metres
Engine: Isuzu 3TNV70 Diesel Engine @ 3000 RPM
Alternator: Brushless AVR Controller 2 pole Alternator
Controller: Mecc Alte GC250 Controller – Auto Start Connectivity
Protections: Over / Under Frequency & Voltage Protection
Load Centre: Hardwire Ready Load Centre – OUTLET / HARDWIRE LOAD Selector
Outlets:
- 3 x 15A 240V Single Phase Outlets – RCD Protected
- 1 x 20A 415V THREE Phase Outlet – RCD Protected
Fuel System: 40 Litre Fuel Tank – 3.8 Litre Per Hour @ 100 % Loading = 10.5 Hour Run Time
Dimensions & Weight: L 130 CM W 640 CM H 840 CM @ 436 KG
Handling: Fork Pockets / Central Lift Point

Electrical Specifications

Prime Power	12.1kVA
Standby Power	13.3kVA
Voltage	415VAC
Frequency	50Hz
Phase	Three Phase
Power Factor	0.8
Engine Speed	3000rpm
Alternator	Brushless AVR
Total Harmonic Distortion (THD)	3.5% (No Load), 2.5% (Full Load)
Generator Controller	Mecc Alte GC250
Operating Modes	Manual / Auto Start
Remote Start	2-Wire
Measured Parameters	Voltage, Current, Frequency, Power, Engine Speed, Running Hours
Engine Protection	Low Oil Pressure Shutdown, High Coolant Temperature Shutdown
Generator Protection	Over Current, Over/Under Voltage, Over/Under Frequency, Shunt-Trip Main Circuit Breaker

Download PDF

Engine & Fuel System

Dimensions & Installation

Length	1300mm
Width	640mm
Height	840mm
Wet Weight	436kg
Lift Point	Single Centre Lift
Mounting	Four-Point Base Mounting (with or without fork pockets)

Isuzu GS012-ETTS
