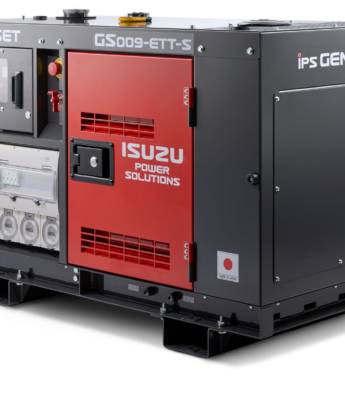

GS009-ETT-S GENERATOR SET Isuzu GS009-ETTS

Model: Isuzu GS009-ETTS Industrial Diesel Generator (Made in Japan)
Power Output: 9.2 kVA Prime Single Phase Output (240V, 50 Hz)
Canopy & Acoustics: Fully enclosed canopy with access doors; 65 dBA @ 7 metres
Engine: Isuzu 3TNV70 Diesel Engine @ 3000 RPM
Alternator: Brushless AVR controller, 2-pole alternator
Controller: Mecc Alte GC250 Controller with Auto Start connectivity
Protections: Over and under frequency and voltage protection
Load Centre: Hardwire ready with OUTLET / HARDWIRE LOAD selector
Outlets:
- 3 x 15A 240V outlets (RCD protected)
- 1 x 32A 240V outlet (RCD protected)
Fuel System: 40-litre fuel tank (3.7 litres per hour @ 100% loading = 10.8-hour run time)
Dimensions & Weight: L 130 cm × W 64 cm × H 84 cm; 436 kg
Handling: Fork pockets and central lift point

Electrical Specifications

Prime Power	9.2kW
Standby Power	10.1kW
Voltage	240VAC
Frequency	50Hz
Phase	Single Phase
Power Factor	1.0
Engine Speed	3000rpm
Alternator	Brushless AVR
Total Harmonic Distortion (THD)	4% (No Load), 7% (Full Load)
Generator Controller	Mecc Alte GC250
Operating Modes	Manual / Auto Start
Remote Start	2-Wire
Measured Parameters	Voltage, Current, Frequency, Power, Engine Speed, Running Hours
Engine Protection	Low Oil Pressure Shutdown, High Coolant Temperature Shutdown
Generator Protection	Over Current, Over/Under Voltage, Over/Under Frequency, Shunt-Trip Main Circuit Breaker

Download PDF

Engine & Fuel System

Dimensions & Installation

Length	1300mm
Width	640mm
Height	840mm
Wet Weight	436kg
Lift Point	Single Centre Lift
Mounting	Four-Point Base Mounting (with or without fork pockets)
